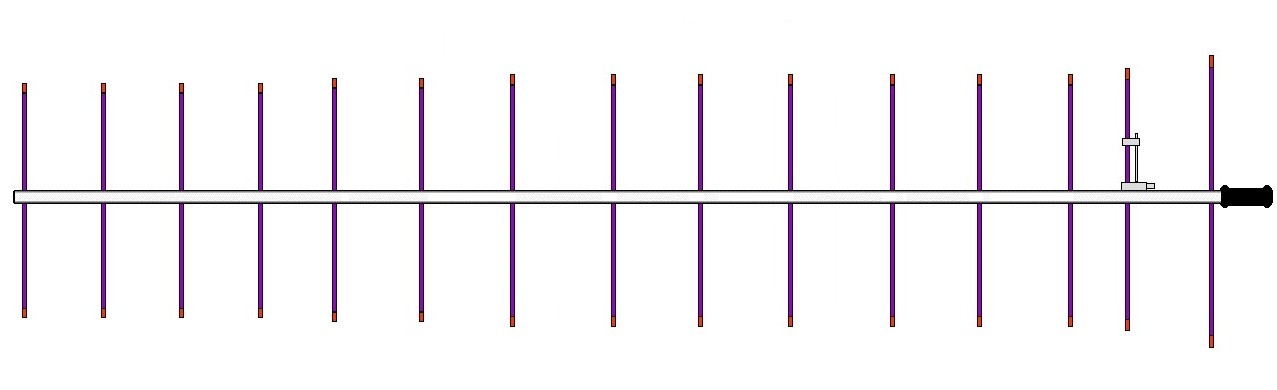

Arrow II GreenCube Satellite Antenna Drawing

"BP" Stands for Back Pack - Three-piece Boom - Split boom.
Work the GreenCube satellite.
15 elements on UHF.
The Gamma Match is pre-assembled & pre-tuned.
BNC only.
The Arrow II line of Antennas has been engineered to provide maximum gain and efficiency in the smallest practical size & weight.
Aluminum Arrow Shafts are used for elements.
The Boom is 3/4" square (with rounded corners) and 116.8" long.
This antenna is too long to hold by hand. It still has the foam handle grip, but needs to be mounted near its balance point.
Under the foam grip, the boom is drilled & tapped with a 1/4-20 hole for most camera tri-pods.
We don't recommend using the tripod hole because the antenna would be way to off balance.
Boom & elements all have plastic tips for safety.
We have had many questions about how to remove the foam handle grip without tearing it. Video showing how to do so using isopropyl alcohol is here..
Because the antenna is hand held, power should be kept to less than 10 watts maximum. If mounted and away from people, maximum power is 150 watts.

GreencubeBP Split boom. This antenna is only available with a split boom. The boom is 3 pieces having 2 splits. It is too long to ship with a solid boom. The boom is drilled on both sides for those who want to order another set of elements below.
Greencube Element Set. This is a duplicate set of elements for those who want to make a cross-polarized antenna.
Arrow II Mounting Bracket (FREE U.S. SHIPPING)
Make payments with PayPal - it's fast, free and secure!

Or you can print out this Order Formand mail in with a Personal Check.

Duplexer for 146/437-10 Satellite Antenna (10 Watts Max.)
FAQ
Q. I have a Full Duplex, Dual Band Radio with a built in duplexer, why do I need another Duplexer ?

A. That is why, Your Radio only has one Connector, the Antenna has two. (1 for VHF & 1 for UHF)
The 10WDuplexer allows you to hear the down link while you are transmitting.
It also has the coax cables to connect your radio to the antenna.



Q. What is the maximum power that can be transmitted through the Arrow II Satellite Antenna?

A. Maximum power is 150 watts without the duplexer and 10 watts with the duplexer.



Q. What is the gain of this antenna?

A. Click here to read about gain.


What is it ? And How to cut your boom to make it a Split Boom or Buy One.
