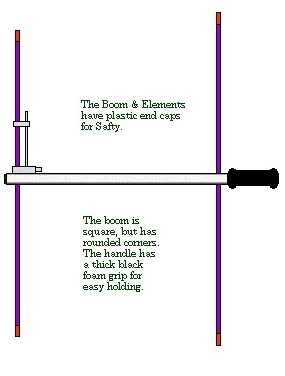

Arrow II  146-2 SPECIFICATIONS
# of elements: 2
Element spacing is .2 wavelengths.
SWR: 1.2:1
Maximum power because the antenna is handheld should be kept to 10 watts or less.
Boom: 3/4" square (T6061 Aluminum)
Elements: Easton Aluminum Allow Arrow Shafts.
Gamma match is attached to half of the driven elements.
Antenna is pre-tuned.
Connector: Female BNC Only.

Can be used with the Arrow II Mounting Bracket below if the Foam Handle Grip is removed.
(For Temporary Mount Only)


Because the antenna is hand held, power should be kept to less than 10 watts maximum. If mounted, maximum power is 150 watts.

PayPal Shopping Cart
146-2 Arrow II Hand Held Portable
Arrow II Mounting Bracket
